Companion GUI - SHAP Multi-Modal LLM Explainer#

Overview#

Separate repository (mvishiu11/shap-mllm-explainer) contains a companion, GUI-first application for exploring token-level and audio time-series attributions produced by mllm_shap.

The app is intentionally containerized (Docker Compose) to provide a reproducible, production-like environment.

Architecture#

The stack is composed of:

  • Frontend: React (Vite build), served by Nginx

  • Backend: FastAPI

  • Database: PostgreSQL (stores sessions and configuration snapshots)

This can be seen on the following diagram:

GUI Architecture Diagram

At a high level, the frontend:

  • loads a model/connector mode

  • accepts text input and optional audio

  • triggers explainability jobs

  • displays attribution visualizations

  • persists and reloads sessions

The backend:

  • validates inputs and model state

  • runs inference and SHAP computation (via mllm_shap)

  • exposes progress/cancel/logs for long-running jobs

  • stores sessions in the database

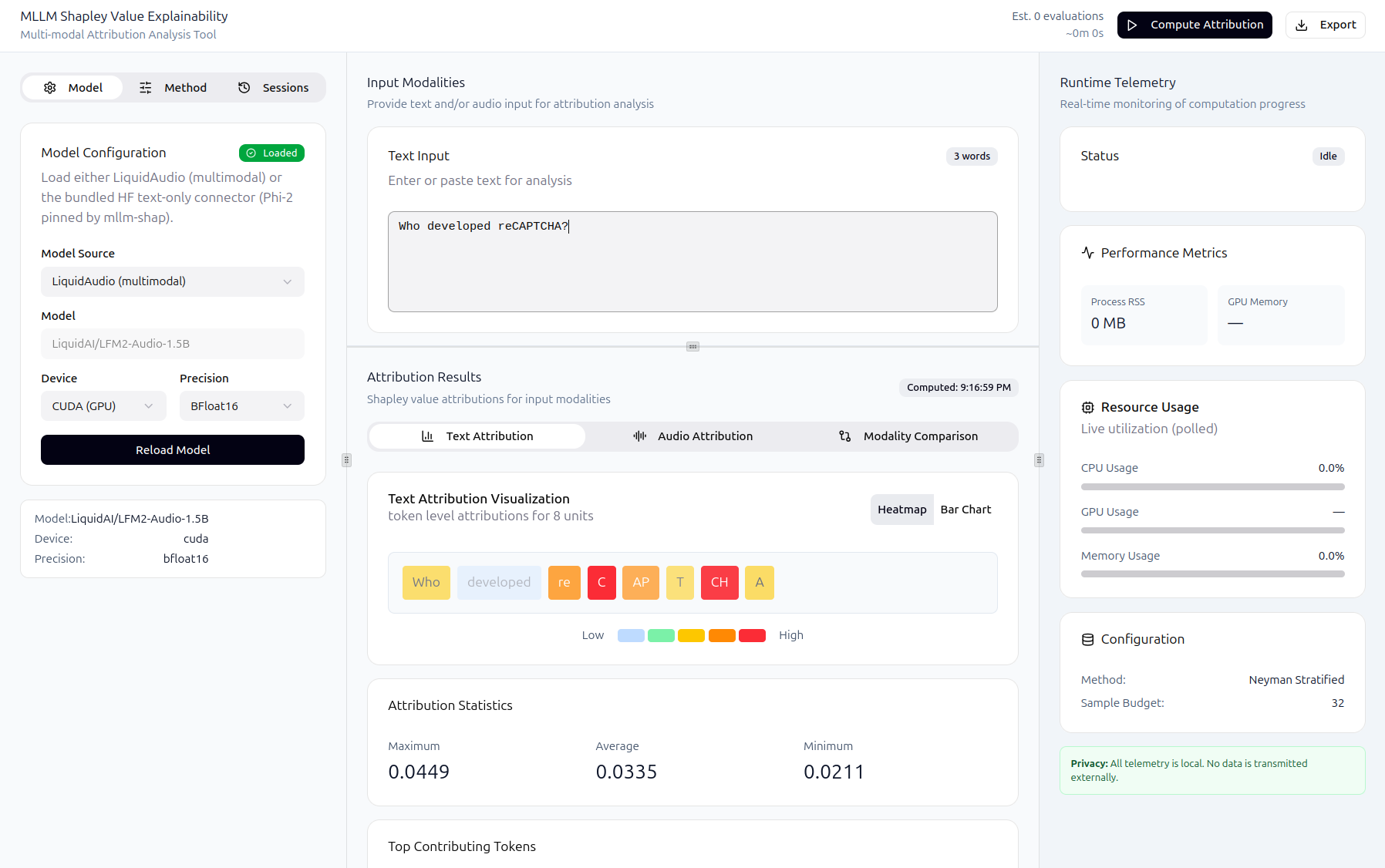

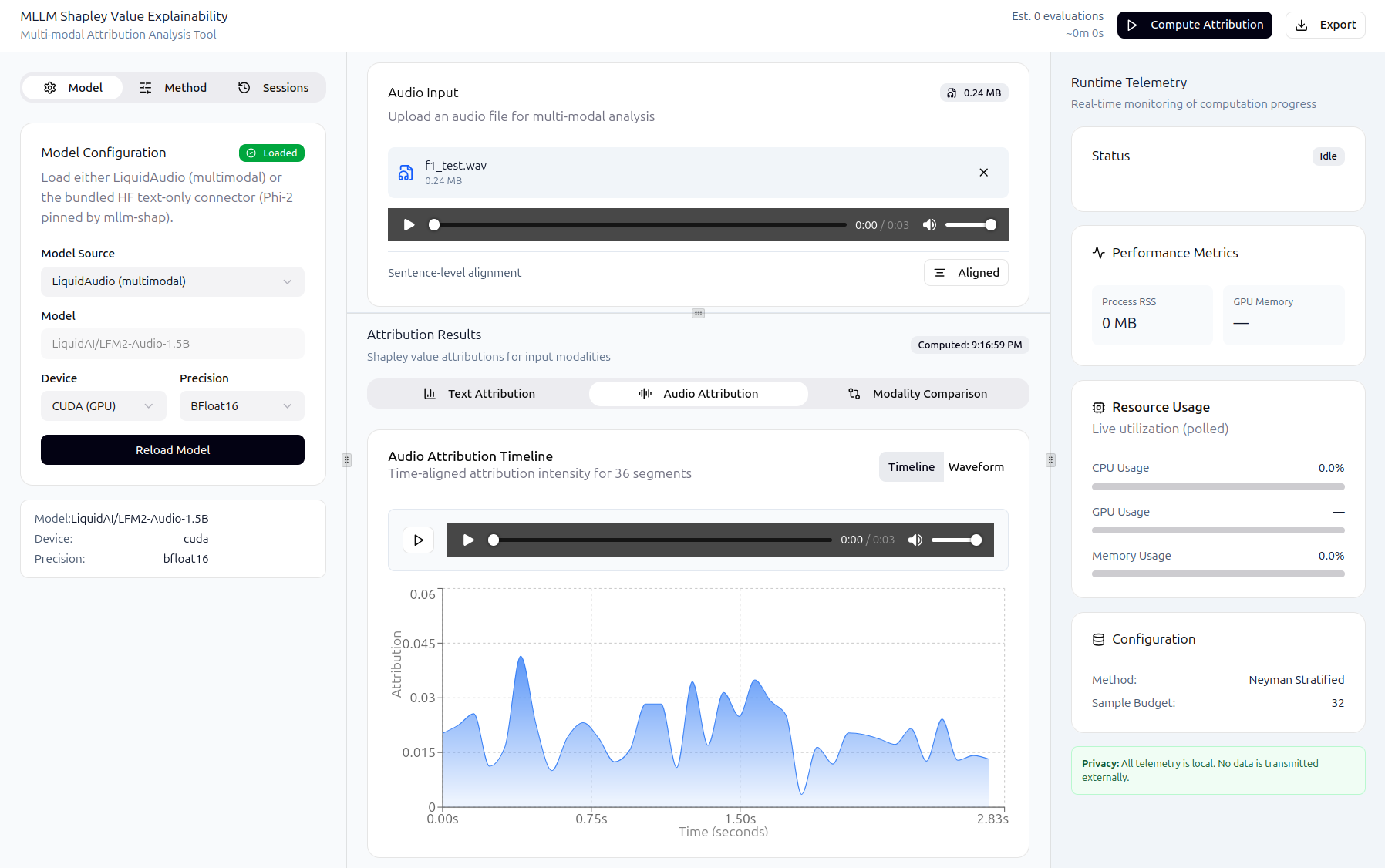

Some examples of the running GUI are shown below:

GUI Example 1 GUI Example 2

Running the application (Docker Compose)#

CPU#

From shap-mllm-explainer/:

docker compose up --build

Open the UI:

  • http://localhost

GPU (optional)#

Prerequisites on the host:

  • NVIDIA driver installed and working (nvidia-smi works)

  • NVIDIA Container Toolkit configured for Docker

Run:

docker compose -f docker-compose.yaml -f docker-compose.gpu.yaml up --build

Quick verification inside the backend container:

docker compose exec backend uv run python -c "import torch; print('cuda_available=', torch.cuda.is_available()); print('torch_cuda=', torch.version.cuda)"

Local development (without Docker)#

Backend#

From shap-mllm-explainer/backend/:

uv sync --dev
uv run uvicorn app.main:app --reload --host 0.0.0.0 --port 8000

Frontend#

From shap-mllm-explainer/web/:

npm i
npm run dev

Configuration#

Frontend configuration#

  • VITE_API_BASE_URL: backend base URL (defaults to /api)

Backend configuration#

  • DATABASE_URL: async SQLAlchemy URL (Compose uses postgresql+asyncpg://...)

  • LOG_LEVEL: log verbosity (e.g. INFO / DEBUG)

  • UV_PYTHON: set in Compose to prevent uv from downloading another CPython inside the container

Compose files to inspect:

  • shap-mllm-explainer/docker-compose.yaml

  • shap-mllm-explainer/docker-compose.gpu.yaml

Backend API surface (high level)#

The backend exposes FastAPI routes under the /api prefix.

General:

  • GET /health

ML endpoints (/api/ml):

  • POST /models/load — load a supported connector/mode

  • POST /predict — run a prediction (text-only, or text+audio for LiquidAudio mode)

  • POST /explain — start an explainability job (supports text and optional audio)

  • GET /progress/{job_id} — progress reporting

  • POST /cancel/{job_id} — cooperative cancellation

  • GET /logs/{job_id} — retrieve the last log lines from a job

  • GET /telemetry — runtime telemetry (CPU/RAM/process + GPU if available)

  • GET /diagnostics — basic model/device diagnostics

Notes:

  • Audio uploads are accepted only when the backend is running in LiquidAudio mode.

  • Text-only mode rejects audio requests with a clear 400 response.
