Command line: mllm-shap

Business context: not every team writes Python. The mllm-shap command turns a YAML configuration and a snapshot JSON file into a JSON result and a chart, and its exit codes let CI jobs tell a bad input from an unavailable model.

Goal: every subcommand and exit code: config --example / --check, plugins, explain (--out, --render / --png, --log-level), reanalyze --strict, and the exit codes 0, 2 (invalid input) and 3 (backend unavailable).

Prerequisites: mllm-shap, Python 3.12; the PNG chart needs the [viz] extra. Commands run in a temporary folder through python -m mllm_shap.cli, the module behind the mllm-shap script; in a terminal type mllm-shap ... instead.

Expected output: a configuration skeleton, the plugin list, a JSON result whose values add up to grand_value - base_value, a bar chart, a reanalyzed result with the same values, and one line per refused input with its exit code.

import json
import subprocess
import sys
import tempfile
from pathlib import Path

from IPython.display import Image

from mllm_shap import ConversationSnapshot, Message, Role, Turn

WORKDIR = Path(tempfile.mkdtemp(prefix="mllm-shap-cli-"))
REPO_CONFIG = next(
    (
        path / "config"
        for path in (Path.cwd(), *Path.cwd().parents)
        if (path / "pyproject.toml").is_file()
    ),
    Path.cwd() / "config",
)


def mllm_shap(*args: str) -> None:
    """Run ``mllm-shap <args>`` in WORKDIR and print its output and exit code.

    Paths under the repository's ``config/`` folder are printed relative to it.
    """
    completed = subprocess.run(
        [sys.executable, "-m", "mllm_shap.cli", *args],
        capture_output=True,
        text=True,
        cwd=WORKDIR,
        check=False,
    )
    for stream in (completed.stdout, completed.stderr):
        print(stream.replace(str(REPO_CONFIG), "config"), end="")
    print(f"[exit {completed.returncode}]")

Usage

mllm-shap --help lists the four subcommands; each has its own --help.

mllm_shap("--help")

usage: mllm-shap [-h] [--log-level {debug,info,warning,error}]
                 {explain,reanalyze,plugins,config} ...

Shapley-value attributions for conversational language models.

positional arguments:
  {explain,reanalyze,plugins,config}
    explain             explain one snapshot
    reanalyze           rescore an archived run without backend calls
    plugins             list registered plugins
    config              print or check a configuration

options:
  -h, --help            show this help message and exit
  --log-level {debug,info,warning,error}
                        log mllm_shap events at this level to stderr
[exit 0]

Write and check a configuration

Business: A configuration checked before it is committed fails in review, not in a nightly job.

Technical: config --example prints a commented skeleton with every section (the mock backend, estimator: exact, an archive under ./runs/{run_id}). config --check FILE validates a file and exits with 0, or with 2 and the reason. The presets shipped in the repository’s config/ folder are checked the same way; the LM Studio, transformers and API presets need their extras and services only when a run starts, not to validate.

example = subprocess.run(
    [sys.executable, "-m", "mllm_shap.cli", "config", "--example"],
    capture_output=True,
    text=True,
    check=True,
).stdout
print(example)
# Explain the user's words only; the system prompt of the snapshot stays fixed.
example = example.replace(
    "plugin_options: {}", "plugin_options: {tokens: {roles: [user]}}"
)
(WORKDIR / "explain.yaml").write_text(example)
mllm_shap("config", "--check", "explain.yaml")
for preset in sorted(REPO_CONFIG.glob("dev_*.yaml")):
    mllm_shap("config", "--check", str(preset))
(WORKDIR / "partial_exact.yaml").write_text(
    example.replace("fraction: 1.0", "fraction: 0.5")
)
mllm_shap("config", "--check", "partial_exact.yaml")

# mllm-shap explain configuration. Validate with: mllm-shap config --check FILE
backend:
  kind: mock                # mock | api | lmstudio | transformers (or a plugin)
  model_id: mock            # model name passed to the backend
  # api_host: http://localhost:1234/v1   # api backend only
  timeout_s: 120.0          # per-request timeout of remote backends
  max_retries: 3            # retries after transient backend failures
  options: {}               # backend-specific settings (LM Studio: see docs)

generation:
  max_new_tokens: 32        # tokens generated per coalition
  temperature: 0.0          # 0.0 makes generations deterministic (enables dedup)
  top_k: 1
  compute_embeddings: false # set automatically for embedding value functions

explanation:
  estimand: shapley         # shapley | banzhaf
  estimator: exact          # exact | mc | complementary | neyman_cc
  value_fn: tfidf_cosine    # tfidf_cosine | embedding_cosine | logprob | ...
  normalizer: identity      # identity | abs_sum | power_shift | min_max
  players: tokens           # tokens | messages (one player per message)
  absence_policy: delete    # delete | pad | neutral
  budget:
    fraction: 1.0           # share of the 2^n coalitions; exact needs 1.0
    # evaluations: 2000     # or an absolute count instead of fraction (not exact)
  include_minimal_masks: false
  max_inflight: 2           # concurrent backend calls
  max_players: 24           # refuse runs planning more than 2^max_players coalitions
  seed: 0
  archive:
    path: ./runs/{run_id}   # "" disables the archive (reanalyze needs one)
    flush_every: 50
    on_exists: error        # error | overwrite
  dedup:
    enabled: auto           # auto | on | off
  kv_cache:
    enabled: false          # prefix KV reuse (transformers backend)
    max_entries: 8
  plugin_options: {}        # per-plugin settings keyed by <group>/<name> or name
explain.yaml: valid
[exit 0]
config/dev_api.yaml: valid
[exit 0]
config/dev_lmstudio.yaml: valid
[exit 0]
config/dev_transformers.yaml: valid
[exit 0]
mllm-shap: error: estimator 'exact' enumerates every coalition; set budget.fraction: 1.0
[exit 2]

List the plugins

plugins prints every registered name per plugin group: the built-ins plus anything installed packages register through entry points (plugins_extending.ipynb). These are the names the configuration accepts.

mllm_shap("plugins")

mllm_shap.estimators: complementary, exact, loo, mc, neyman_cc
mllm_shap.estimands: banzhaf, shapley
mllm_shap.value_fns: embedding_cosine, embedding_euclidean, logprob, reference_wer, tfidf_cosine
mllm_shap.normalizers: abs_sum, identity, min_max, power_shift
mllm_shap.backends: api, lmstudio, mock, mock_audio, transformers
mllm_shap.partitions: messages, sgpa_segments, tokens
mllm_shap.absence_policies: delete, neutral, pad
mllm_shap.renderers: token_bar, token_text
[exit 0]

Explain a snapshot

Business: One command produces the artifact a reviewer needs: a JSON file with values, labels and the run manifest, plus an optional chart.

Technical: The snapshot file uses the ConversationSnapshot.to_json format. explain --out writes the same payload as ExplainRunOutput.to_dict(); --render token_bar --png chart.png saves a chart (both flags or neither); --log-level info prints the pipeline’s stage events to stderr. The example configuration uses the mock backend, which answers with a hash of the prompt: only the full prompt reproduces the base answer, every other coalition scores 0 with tfidf_cosine, and exact Shapley splits the value equally between the six words.

SYSTEM = (
    "You are a support assistant for a store. Answer only from the question, in one "
    'short sentence. If it does not give enough information, say "Not enough '
    'information." Never invent policy details and never ask a question.'
)
snapshot = ConversationSnapshot.from_turns((
    Turn(
        messages=(
            Message(role=Role.SYSTEM, text=SYSTEM),
            Message(role=Role.USER, text="Refund within thirty days with receipt?"),
        )
    ),
))
(WORKDIR / "snapshot.json").write_text(snapshot.to_json())

456

mllm_shap(
    "--log-level",
    "info",
    "explain",
    "--config",
    "explain.yaml",
    "--snapshot",
    "snapshot.json",
    "--out",
    "result.json",
    "--render",
    "token_bar",
    "--png",
    "chart.png",
)
result = json.loads((WORKDIR / "result.json").read_text())
print("keys:", list(result))
for label, value in zip(result["labels"], result["values"], strict=True):
    print(f"{label['text']:>9} {value:.4f}")
print(
    "sum:",
    round(sum(result["values"]), 6),
    " grand - base:",
    result["grand_value"] - result["base_value"],
)
print("archive:", sorted(path.name for path in (WORKDIR / "runs").iterdir()))

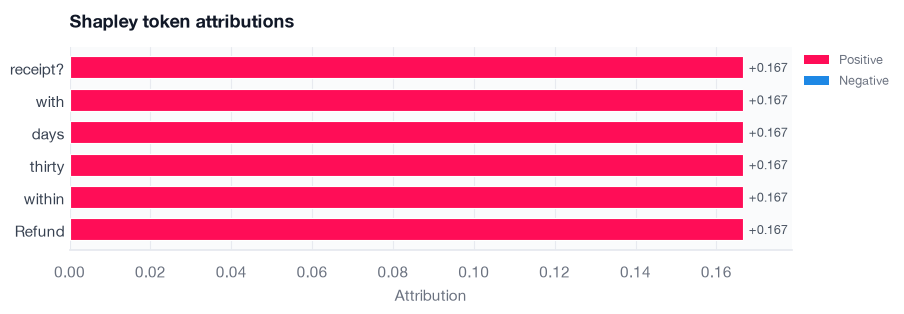

Image(WORKDIR / "chart.png")

2026-10-13 09:36:54,285 INFO [mllm_shap.pipeline.orchestrator] explain run 84caf96b080cfbe6-90716f5bfc5b started: 6 players, estimator exact, backend mock
2026-10-13 09:36:54,287 INFO [mllm_shap.pipeline.orchestrator] base generated in 0.1 ms
2026-10-13 09:36:54,288 INFO [mllm_shap.pipeline.orchestrator] 64 coalitions scheduled
2026-10-13 09:36:54,298 INFO [mllm_shap.pipeline.orchestrator] explain run 84caf96b080cfbe6-90716f5bfc5b done in 12.7 ms (64 coalitions, 63 backend calls)
[exit 0]
keys: ['values', 'labels', 'base_value', 'grand_value', 'estimand', 'metrics', 'manifest', 'perf']
   Refund 0.1667
   within 0.1667
   thirty 0.1667
     days 0.1667
     with 0.1667
 receipt? 0.1667
sum: 1.0  grand - base: 1.0
archive: ['84caf96b080cfbe6-90716f5bfc5b']

Reanalyze the archive

Business: Anyone with the archive folder and the configuration can reproduce the result file without model access.

Technical: The example configuration archives the run under ./runs/{run_id}. reanalyze --archive rescores it with no backend calls and prints (or writes with --out) the same JSON payload; the labels carry ids only because archives do not store the player text. --strict refuses archives scored with backend embeddings (archive_reanalyze.ipynb); this run used none, so it succeeds.

run_dir = f"runs/{result['manifest']['run_id']}"
mllm_shap(
    "reanalyze",
    "--config",
    "explain.yaml",
    "--archive",
    run_dir,
    "--strict",
    "--out",
    "replay.json",
)
replay = json.loads((WORKDIR / "replay.json").read_text())
print("same values as explain:", replay["values"] == result["values"])
print("executed backend calls:", replay["metrics"]["executed"])

[exit 0]
same values as explain: True
executed backend calls: 0

Exit codes

Business: A scheduler can retry exit code 3 (the model server is down) and page a human for exit code 2 (the input is wrong).

Technical: Every input the command reads is checked: a missing or malformed snapshot, an invalid configuration, a damaged archive and --render without --png exit with 2 and one mllm-shap: error: line. A backend that cannot be built or reached exits with 3: here an api backend pointed at a closed local port with max_retries: 0 (with the [api] extra missing, the same configuration also exits with 3). Any other exception is a bug and propagates with its traceback.

(WORKDIR / "broken.json").write_text(
    '{"turns": [{"messages": [{"role": "robot", "text": "hi"}]}]}'
)
mllm_shap("explain", "--config", "explain.yaml", "--snapshot", "missing.json")
mllm_shap("explain", "--config", "explain.yaml", "--snapshot", "broken.json")
mllm_shap("explain", "--config", "partial_exact.yaml", "--snapshot", "snapshot.json")
mllm_shap(
    "explain",
    "--config",
    "explain.yaml",
    "--snapshot",
    "snapshot.json",
    "--render",
    "token_text",
)
(WORKDIR / run_dir / "manifest.json").unlink()
mllm_shap("reanalyze", "--config", "explain.yaml", "--archive", run_dir)

(WORKDIR / "unreachable.yaml").write_text(
    example
    .replace("kind: mock ", "kind: api  ")
    .replace("# api_host: http://localhost:1234/v1", "api_host: http://127.0.0.1:9/v1")
    .replace("max_retries: 3 ", "max_retries: 0 ")
    .replace("path: ./runs/{run_id}", 'path: ""            ')
)
mllm_shap("explain", "--config", "unreachable.yaml", "--snapshot", "snapshot.json")

mllm-shap: error: cannot read snapshot missing.json: No such file or directory
[exit 2]
mllm-shap: error: invalid snapshot broken.json: turn 0: unknown role 'robot'
[exit 2]
mllm-shap: error: estimator 'exact' enumerates every coalition; set budget.fraction: 1.0
[exit 2]
mllm-shap: error: --render and --png must be given together
[exit 2]
mllm-shap: error: cannot read archive runs/84caf96b080cfbe6-90716f5bfc5b: archive manifest missing: runs/84caf96b080cfbe6-90716f5bfc5b/manifest.json
[exit 2]
mllm-shap: error: backend unavailable: HTTP API generation request failed
[exit 3]
